Category |
Description |
43" |
|
LCD panel |
Name Type |
HD Digital Self-Service Terminal |
|
Model Number |
V431YRL-D04 |
|
Panel size |
43 inch |
|
Display Area |
941.184(H) × 529.416(V) mm |
|
Aspect Ratio |
16：9 |
|
LCD Type |
TFT-LCD |
|
Max Resolution |
1920 × 1080 |
|
Display color |
16.7 M |
|
Brightness |
300 cd/m² |
|
Contrast ratio |
1200 : 1 |
|
Viewing angle (up/down/left/right) |
89°/89°/89°/89° |
|
Response Time |
8ms |
|
Field Frequency |
60Hz |
|
Color system |
PAL/NTSC/Auto Identification |
|
OSD Language |
Chinese/English |
|
Touch screen parameter |
Touch Style |
Capacitive touch |
|
Touch points |
10 points |
|
The glass transmittance |
>85% |
|
Response speed |
150 points/s |
|
Input mode |
Fingers, touch pen |
|
Output form |
The coordinate output |
|
The theory of clicks |
Unlimited |
|
Touch Interfaces |
USB |
|
Operating temperature &Humidity |
-10℃ ~ +60℃，≤90%RH |
|
Storage temperature &Humidity |
-20℃ ~ +65℃，≤90%RH |
|

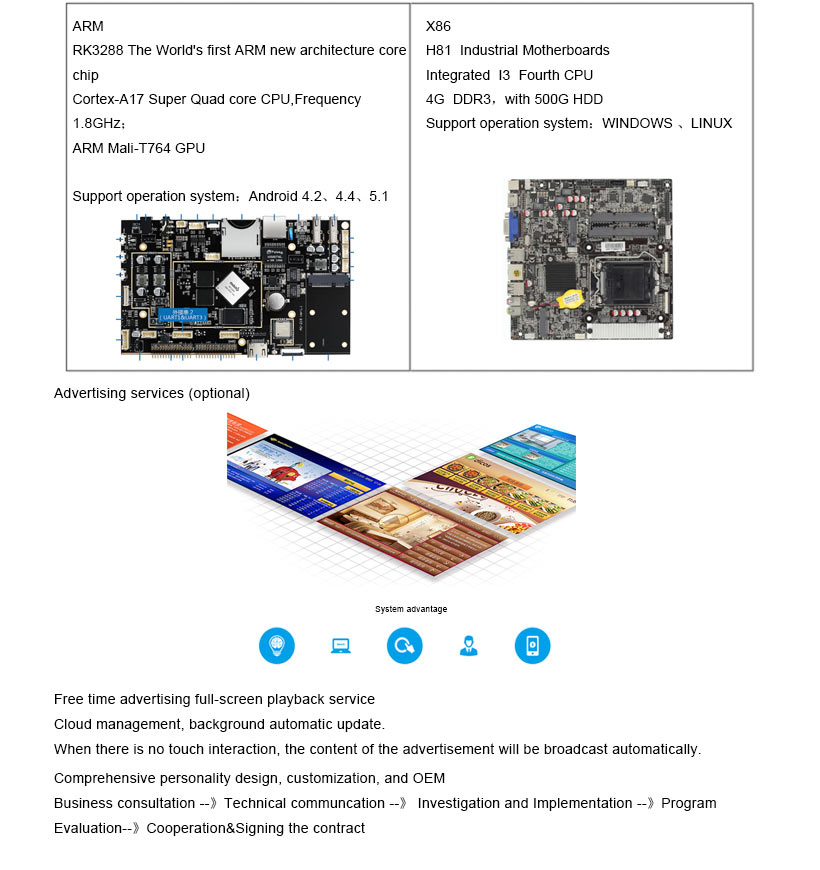

Computer configuration |
CPU |
I3 |
|
DDR |
4G DDR3 |
|
HDD |
500G |
|
WIFI |
Support |
|
Power |
Audio system |
Built-in 8 Ω 10 w * 2 speakers |
|
Power |
AC100V～240V，50/60Hz |
|
The maximum power loss |
≦250W |
|
Standby power loss |
＜1W |
|
Environment |
Operating temperature |
0℃~50℃ |
|
Storage temperature |
-20℃~60℃ |
|
Instructions |
Frame material |
Metal |
|
Fuselage size (long x high x thick) |
|
|
Installation type |
Floor standing |
|
Range of application |
Indoor |
|
Accessories |
Power cable |
1 |
|
Manual |
1 |
|
Optional Function |
Printer |
Thermal printer |
|
Card reader |
coin selector |
|
Coin collector |
Casino token saver |
